Rope Capstan Winch Video
Detailed Description

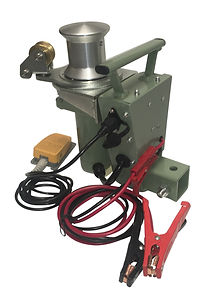

The ETUG2-FL1 2 is a unique upgrade 12 Volt capstan winch designed to pull with consistent power and use almost unlimited lengths of line. Unlike a conventional drum winch that coils or spools a predetermined length of line on a drum, the Tugger 2 does not lose power because the line is continually bailed or taken off the capstan as the line is retrieved. A capstan winch is generally found in marine applications for lifting anchor lines but we have designed one to be used as a vehicle winch.
Ideal for hunting, farming, marine and industrial applications.
- installs and removes instantly
- mounts to a standard 2" receiver
- suitable for use on Trucks, RV's, Trailers, ATV's, SxS any vehicle with a two inch hitch receiver
- remote foot switch allows for hands free operation
- line speed of 55 feet per minute at 200 lbs.
- stall load of 2,000 lbs. horizontal pull
- includes 6' foot wiring harness made of 6 gauge copper with clips
- includes tough nylon carry bag for transporting and storage
Specifications
12 volt, 2.2 hp motor, dual carriage with 6 planetary gears
121:1 gear ratio and 40 rpm
80 amp thermal breaker
100 amp solenoid
Weight 47 Lbs
Box Dimensions 11"L x 11"W x 13"H
